Spec

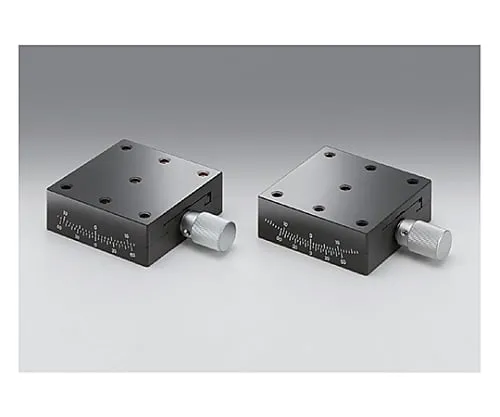

• [<α axis Gonio stage -M6-Stage size 65mm> Common specification]
• Table surface size: 65 x 65mm
• Axis type: α axis
• Movement guide: Dovetail method
• Main material: Brass
• Surface treatment: Super black chrome
• Withstand load: 98N (10.0kgf)
• Permissible moment load/pitch: 1.0N・m
• Permissible moment load/roll: 1.5N・m
• Permissible moment load/yaw: -
• Moment rigidity/roll: 0.3″/ N・cm
• Moment rigidity/yaw: -
• Parallelism: 50μm
• [Individual specification]
• Rotation center height: 50±0.1mm
• Angle range: ±20°
• Vernier minimum reading: 5′
• Travel per knob rotation: Approximately 1.16°
• Rotation center displacement: φ0.1mm or less
• Mass: 0.88kg
• RoHS conform product
