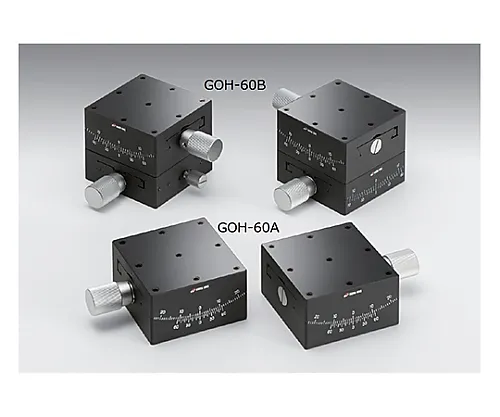

61-6979-83 Αβ Axis Small Thin Gonio Stage Size 60mm 50±0.1mm GOH-60B50
Analyzer, Testing Equipment

61-6979-83 Αβ Axis Small Thin Gonio Stage Size 60mm 50±0.1mm GOH-60B50

model: 61-6979-83
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6979-83Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6979-83
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This gonio stage is ***d for posture adjustment (angle adjustment and correction) using worm gear in the ant groove.

Spec

  • [<αβ axis small thin Gonio stage Stage size 60mm> Common specification]
  • Table surface size: 60 x 60mm
  • Axis type: αβ axis
  • Movement guide: Dovetail method
  • Main material: Brass
  • Surface treatment: Super black chrome
  • Withstand load: 98N (10.0kgf)
  • Permissible moment load/pitch: 1.6N・m
  • Permissible moment load/roll: 1.6N・m
  • Permissible moment load/yaw: -
  • Moment rigidity/roll: -
  • Moment rigidity/yaw: -
  • Parallelism: 100μm
  • [Individual specification]
  • Rotation center height: 50±0.1mm
  • Angle range/(upper) β axis: ±20°
  • Angle range/(lower) α axis: ±15°
  • Vernier minimum reading: 5′
  • Travel per knob rotation/(upper) β axis: Approximately 1.03°
  • Travel per knob rotation/(lower) α axis: Approximately 0.71°
  • Rotation center displacement: φ0.1mm or less
  • Mass: 1.9kg
  • RoHS conform product
