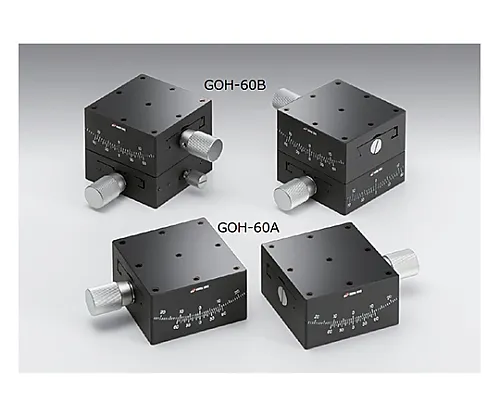

61-6979-77 Α Axis Gonio Stage Size 60mm 50±0.1mm GOH-60A50
Product Description
Product Model: 61-6979-77Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6979-77
Product Brand: SIGMAKOKI CO., LTD.
Features
- Ideal for posture adjustment (angle adjustment and correction) using worm gear in the ant groove.
Spec
- [<α axis Gonio stage Stage size 60mm> Common specification]
- Table surface size: 60 x 60mm
- Axis type: α axis
- Movement guide: Dovetail method
- Main material: Brass
- Surface treatment: Super black chrome
- Withstand load: 98N (10.0kgf)
- Permissible moment load/pitch: 1.6N・m
- Permissible moment load/roll: 2.2N・m
- Permissible moment load/yaw: -
- Moment rigidity/roll: 0.3″/ N・cm
- Moment rigidity/yaw: -
- Parallelism: 50μm
- [Individual specification]
- Rotation center height: 50±0.1mm
- Angle range: ±20°
- Vernier minimum reading: 5′
- Travel per knob rotation: Approximately 1.03°
- Rotation center displacement: φ0.1mm or less
- Mass: 1.0kg
- RoHS conform product
