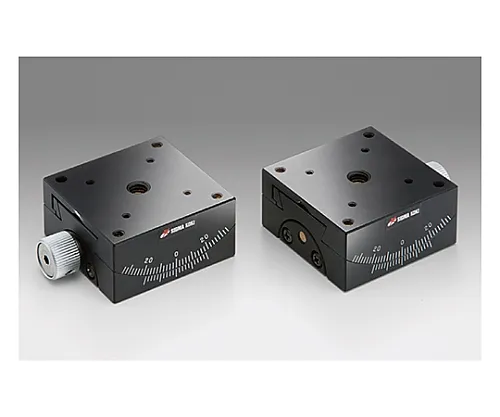

61-6979-57 Α Axis Small Gonio Stage Size 40mm 15±0.1mm GOH-40A15
Analyzer, Testing Equipment

61-6979-57 Α Axis Small Gonio Stage Size 40mm 15±0.1mm GOH-40A15

model: 61-6979-57
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6979-57Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6979-57
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This gonio stage is ***d for posture adjustment (angle adjustment and correction) using worm gear in the ant groove.

Spec

  • [<α axis small Gonio stage Stage size 40mm> common specification]
  • Table surface size: 40 x 40mm
  • Axis type: α axis
  • Movement guide: Dovetail method
  • Main material: Brass
  • Surface treatment: Super black chrome
  • Withstand load: 68.7N (7.0kgf)
  • Permissible moment load/pitch: 0.9N・m
  • Permissible moment load/roll: 1.2N・m
  • Permissible moment load/yaw: -
  • Moment rigidity/roll: 0.51″/ N・cm
  • Moment rigidity/yaw: -
  • Parallelism: 50μm
  • [Individual specification]
  • Table surface size: 40 x 40mm
  • Rotation center height: 15±0.1mm
  • Angle range: ±20°
  • Vernier minimum reading: 12′
  • Travel per knob rotation: Approximately 2.83°
  • Rotation center displacement: φ0.1mm or less
  • Movement guide: Dovetail method
  • Main material: Brass
  • Surface treatment: Super black chrome
  • Withstand load: 68.7N (7.0kgf)
  • Permissible moment load/pitch: 0.9N・m
  • Permissible moment load/roll: 1.2N・m
  • Permissible moment load/yaw: ?
  • Moment rigidity/pitch: ?
  • Moment rigidity/roll: 0.51″/N・cm
  • Moment rigidity/yaw: ?
  • Parallelism: 50μm
  • Mass: 0.25kg
  • RoHS conform product
