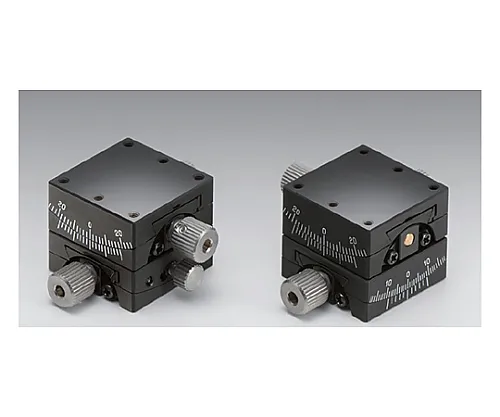

61-6979-53 Αβ Axis Small Thin Gonio Stage Size 25mm 18±0.1mm GOH-25B18
Analyzer, Testing Equipment

61-6979-53 Αβ Axis Small Thin Gonio Stage Size 25mm 18±0.1mm GOH-25B18

model: 61-6979-53
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6979-53Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6979-53
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This gonio stage is ***d for posture adjustment (angle adjustment and correction) using worm gear in the ant groove.

Spec

  • [<αβ axis small thin Gonio stage Stage size 25mm> Common specification]
  • Table surface size: 25 x 25mm
  • Axis type: αβ axis
  • Movement guide: Dovetail method
  • Main material: Brass
  • Surface treatment: Super black chrome
  • Withstand load: 19.6N (2.0kgf)
  • Permissible moment load/pitch: 0.35N・m
  • Permissible moment load/roll: 0.35N・m
  • Permissible moment load/yaw: -
  • Moment rigidity/roll: -
  • Moment rigidity/yaw: -
  • Parallelism: 100μm
  • [Individual specification]
  • Rotation center height: 18±0.1mm
  • Angle range/(upper) β axis: ±20°
  • Angle range/(lower) α axis: ±15°
  • Vernier minimum reading: 12′
  • Travel per knob rotation/(upper) β axis: Approximately 3.1°
  • Travel per knob rotation/(lower) α axis: Approximately 2.17°
  • Rotation center displacement: φ0.1mm or less
  • Mass: 0.13kg
  • RoHS conform product
