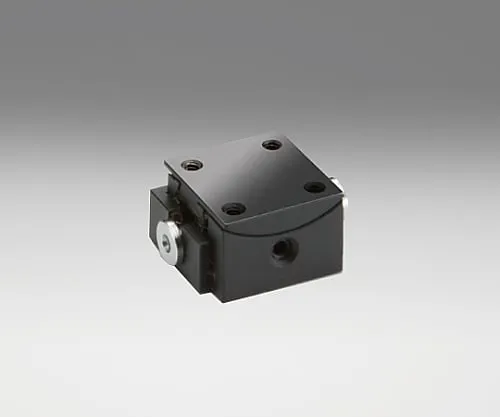

61-6979-46 Α Axis Ultra Small Gonio Stage Size 15mm GOH-15A10
Product Description
Product Model: 61-6979-46Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6979-46
Product Brand: SIGMAKOKI CO., LTD.
Features
- This gonio stage is ***d for posture adjustment (angle adjustment and correction) using worm gear in the ant groove.
- The ultra-compact gonio stage with a stage size of □ 15 mm (GOH-15 A10) is the company's original product.
- When operating the GOH-15A10, *** it with a hex wrench using a hex hole.
- * The GOH-15A10 does not come with a scale or clamp mechanism.
Spec
- Table surface size: 15 x 15mm
- Rotation center height: 10±0.1mm
- Angle range: ±20°
- Vernier minimum reading: ?
- Travel per knob rotation: Approximately 5°
- Rotation center displacement: φ0.1mm or less
- Movement guide: Dovetail method
- Main material: Brass
- Surface treatment: Super black chrome
- Withstand load: 9.8N (1.0kgf)
- Permissible moment load/pitch: 0.03N・m
- Permissible moment load/roll: 0.05N・m
- Permissible moment load/yaw: ?
- Moment rigidity/pitch: ?
- Moment rigidity/roll: ?
- Moment rigidity/yaw: ?
- Parallelism: 50μm
- Mass: 0.02kg
- RoHS conform product
