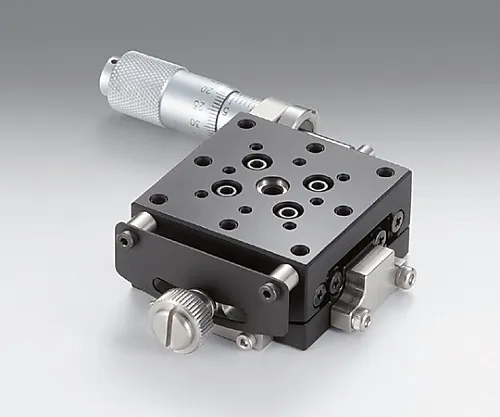

61-6979-10 Α Axis Micro Integral Gonio Stage Size 40mm 20±0.1mm GOHT-40A20BMS
Analyzer, Testing Equipment

61-6979-10 Α Axis Micro Integral Gonio Stage Size 40mm 20±0.1mm GOHT-40A20BMS

model: 61-6979-10
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6979-10Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6979-10
Product Brand: SIGMAKOKI CO., LTD.

Features

  • High-precision gonio stage with direct guide processing on the quenched stainless steel stage body and moving table.
  • Smooth movement makes it ideal for frequent manipulation.
  • Compared to the feed knob type (GOHT), the *** of a micrometer enables precise work.
  • A disk clamp is ***d to improve stability during clamping.
  • The attachment pin (GOHT-AP) is also available separately.
  • A guide integrated automatic gonio stage OSMS-40A *** with a stepping motor is also available.
  • * The micrometer of the α axis will interfere with the sewing machine when it is attached to the αβ axis.

Spec

  • [<α axis micro type integral goniometer stage, stage size □40mm> common specification]
  • Table surface size: 40 x 40mm
  • Axis type: α axis
  • Micro operation position: Side
  • Movement guide: Ball guide
  • Main material: Stainless Seel (SUS440C) quench hardened
  • Surface treatment: Super black chrome
  • Withstand load: 58.8N (6.0kgf)
  • Permissible moment load/pitch: 2.0N・m
  • Permissible moment load/roll: 3.0N・m
  • Permissible moment load/yaw: 2.0N・m
  • Moment rigidity/roll: 0.6″/ N・cm
  • Moment rigidity/yaw: 0.6″/ N・cm
  • Parallelism: 30μm
  • [Individual specification]
  • Rotation center height: 20±0.1mm
  • Angle range: ±11°
  • Travel per knob rotation: Approximately 0.9°
  • Rotation center displacement: φ0.007mm or less
  • Mass: 0.2kg
  • RoHS conform product
