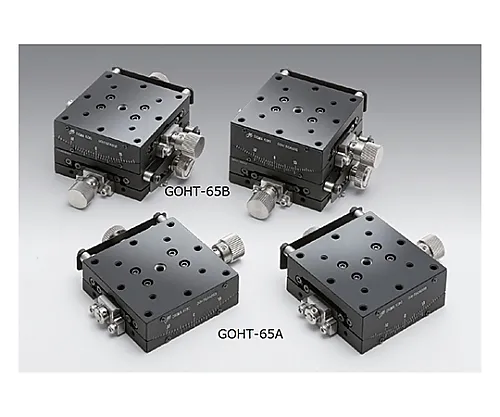

61-6979-02 Αβ Axis Guide Integral Gonio Stage Size 65mm 50±0.2mm GOHT-65B50B-M6
Product Description
Product Model: 61-6979-02Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6979-02
Product Brand: SIGMAKOKI CO., LTD.
Features
- High-precision gonio stage with direct guide processing on the quenched stainless steel stage body and moving table.
- Smooth movement makes it ideal for frequent manipulation.
- A disk clamp is ***d to improve stability during clamping.
- The integrated guide structure provides high performance with a displacement of φ0.007 mm or less during rotation.
- The attachment pin (GOHT-AP) is also available separately.
Spec
- [<αβ axis guide integral goniometer stage, stage size □65mm> common specification]
- Table surface size: 65 x 65mm
- Axis type: αβ axis
- Movement guide: Ball guide
- Main material: Stainless Seel (SUS440C) quench hardened
- Surface treatment: Super black chrome
- Withstand load: 98N (10.0kgf)
- Permissible moment load/pitch: 3.5N・m
- Permissible moment load/roll: 6.5N・m
- Permissible moment load/yaw: 3.5N・m
- Moment rigidity/roll: -
- Moment rigidity/yaw: -
- Parallelism: 30μm
- [Individual specification]
- Rotation center height: 50±0.2mm
- Angle range/(upper) β axis: ±20°
- Angle range/(lower) α axis: ±15°
- Vernier minimum reading: 0.1°
- Travel per knob rotation/(upper) β axis: Approximately 1.70°
- Travel per knob rotation/(lower) α axis: Approximately 1.22°
- Rotation center displacement: φ0.007mm or less
- Mass: 1.5kg
- RoHS conform product
