61-6978-43 Αβ Axis Guide Integral Gonio Stage Size 40mm 20±0.2mm GOHT-40B20B
Analyzer, Testing Equipment

61-6978-43 Αβ Axis Guide Integral Gonio Stage Size 40mm 20±0.2mm GOHT-40B20B

model: 61-6978-43
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6978-43Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6978-43
Product Brand: SIGMAKOKI CO., LTD.

Features

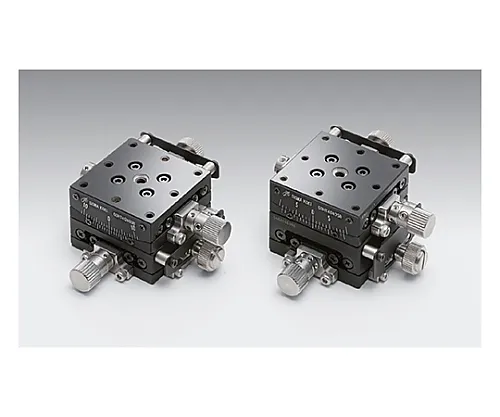

  • High-precision gonio stage with direct guide processing on the quenched stainless steel stage body and moving table.
  • Smooth movement makes it ideal for frequent manipulation.
  • A disk clamp is ***d to improve stability during clamping.
  • The integrated guide structure provides high performance with a displacement of φ0.007 mm or less during rotation.
  • Attachment pins (accessories) are ideal for mounting on the αβ axis and positioning when attached to various devices and equipment.
  • The attachment pin (GOHT-AP) is also available separately.
  • A guide integrated automatic gonio stage OSMS-40A *** with a stepping motor is also available.
  • We also offer a white exterior finish with electroless nickel plating for surface treatment.

Spec

  • [<αβ axis guide integral goniometer stage, stage size □40mm> common specification]
  • Table surface size: 40 x 40mm
  • Axis type: αβ axis
  • Movement guide: Ball guide
  • Main material: Stainless Seel (SUS440C) quench hardened
  • Surface treatment: Electroless nickel plating process, part number suffix B: Super black chrome
  • Withstand load: 58.8N (6.0kgf)
  • Permissible moment load/pitch: 2.0N・m
  • Permissible moment load/roll: 2.0N・m
  • Permissible moment load/yaw: 2.0N・m
  • Parallelism: 30μm
  • [Individual specification]
  • Rotation center height: 20±0.2mm
  • Angle range/(upper) β axis: ±20°
  • Angle range/(lower) α axis: ±10°
  • Vernier minimum reading: 0.1°
  • Travel per knob rotation/(upper) β axis: Approximately 2.31°
  • Travel per knob rotation/(lower) α axis: Approximately 1.41°
  • Rotation center displacement: φ0.007mm or less
  • Mass: 0.4kg
  • RoHS conform product
