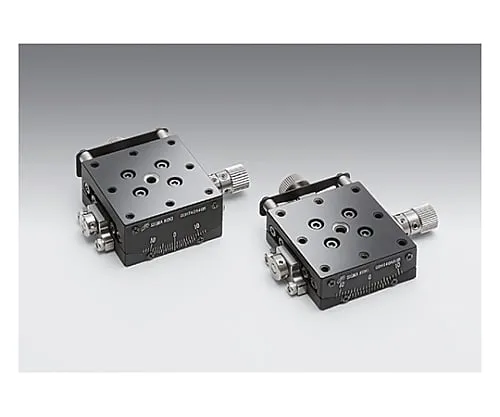

61-6978-19 Α Axis Guide Integral Gonio Stage Size 40mm 20±0.1mm GOHT-40A20B
Product Description
Product Model: 61-6978-19Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6978-19
Product Brand: SIGMAKOKI CO., LTD.
Features
- High-precision gonio stage with direct guide processing on the quenched stainless steel stage body and moving table.
- Smooth movement makes it ideal for frequent manipulation.
- A disk clamp is ***d to improve stability during clamping.
- The integrated guide structure provides high performance with a displacement of φ0.007 mm or less during rotation.
- Attachment pins (accessories) are ideal for mounting on the αβ axis and positioning when attached to various devices and equipment.
- The attachment pin (GOHT-AP) is also available separately.
- A guide integrated automatic gonio stage OSMS-40A *** with a stepping motor is also available.
- We also offer a white exterior finish with electroless nickel plating for surface treatment.
Spec
- [<α axis guide integral goniometer stage, stage size □40mm> common specification]
- Table surface size: 40 x 40mm
- Axis type: α axis
- Movement guide: Ball guide
- Main material: Stainless Seel (SUS440C) quench hardened
- Surface treatment: Electroless nickel plating process, part number suffix B: Super black chrome
- Withstand load: 58.8N (6.0kgf)
- Permissible moment load/pitch: 2.0N・m
- Permissible moment load/roll: 3.0N・m
- Permissible moment load/yaw: 2.0N・m
- Moment rigidity/roll: 0.6″/ N・cm
- Moment rigidity/yaw: 0.6″/ N・cm
- Parallelism: 30μm
- [Individual specification]
- Rotation center height: 20±0.1mm
- Angle range: ±20°
- Vernier minimum reading: 0.1°
- Travel per knob rotation: Approximately 2.31°
- Rotation center displacement: φ0.007mm or less
- Mass: 0.2kg
- RoHS conform product
