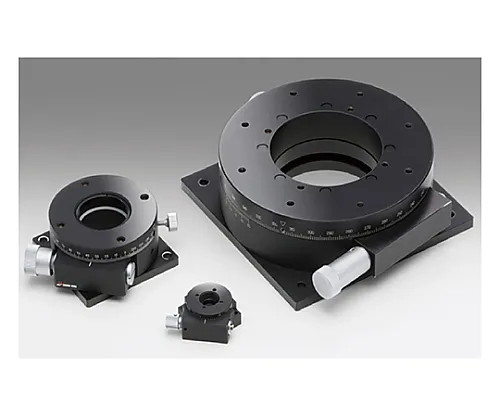

61-6978-09 Θ Axis Worm Type Stage Φ25mm 29.4N (3.0kgf) KSW-256
Product Description
Product Model: 61-6978-09Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6978-09
Product Brand: SIGMAKOKI CO., LTD.
Features
- Since it is driven by a worm gear, it is a rotating stage that can be precisely adjusted over 360°.
- The through hole in the center of the stage can be ***d for the through hole.
- * The KSW-256 and KSW-1006 do not come with a clamp mechanism.
- * Vernier scale is not included in KSW-256 and KSW-406.
Spec
- [<θ axis worm drive stage> common specification]
- Main material: Brass (KSW-1006: Aluminum)
- Surface treatment: Super black chrome (KSW-1006: Black anodic oxide)
- Movement guide: Lapping method (KSW-1206**: Crossed roller)
- [Individual specification]
- Table surface size: φ25mm
- Rotation range: Fine: 360° rotation
- Scale minimum reading: 5°
- Knob rotation angle: Approximately 8°/rotation
- Withstand load: 29.4N (3.0kgf)
- Permissible moment load/pitch: 0.14N・m
- Moment stiffness: 6.1″/N・cm
- Parallelism: 30μm
- Eccentricity: 20μm
- Wobble: 15μm
- Mass: 0.07kg
- RoHS conform product
