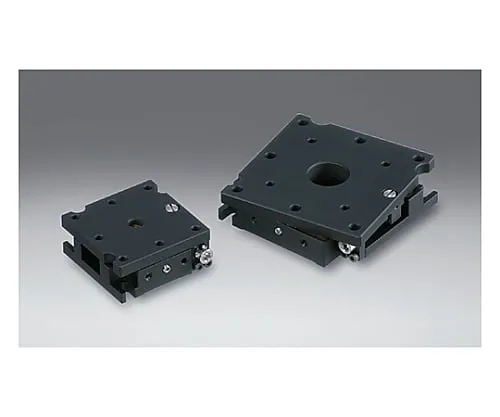

61-6978-06 Θ Axis Square Fine Stage 25 x 25mm Dovetail Method KSSA-256
Product Description
Product Model: 61-6978-06Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6978-06
Product Brand: SIGMAKOKI CO., LTD.
Features
- A unique small rotation stage with a square table surface.
- It is also suitable for slight angle adjustment and for installation of equipment since there are no protrusions such as micro.
- Hex wrench with knob and clamp wrench are included.
- * When inserting the M3 and M4 screws into the top table surface, *** within the specified tap depth as it may damage the sliding surface.
Spec
- [<θ axis square fine stage> common specification]
- Movement guide: Lapping method
- Main material: Brass
- Surface treatment: Super black chrome
- [Individual specification]
- Table surface size: 25 x 25mm
- Rotation range: ±3°
- Scale minimum reading: ?
- Movement amount of 1 rotation: Approximately 3.18°
- Movement guide: Dovetail method
- Main material: Brass
- Surface treatment: Super black chrome
- Withstand load: 29.4N (3.0kgf)
- Maximum moment capacity: ?
- Moment stiffness: 2.0″/N・cm
- Parallelism: 50μm
- Eccentricity: ?
- Wobble: ?
- Mass: 0.09kg
- RoHS conform product
