Analyzer, Testing Equipment

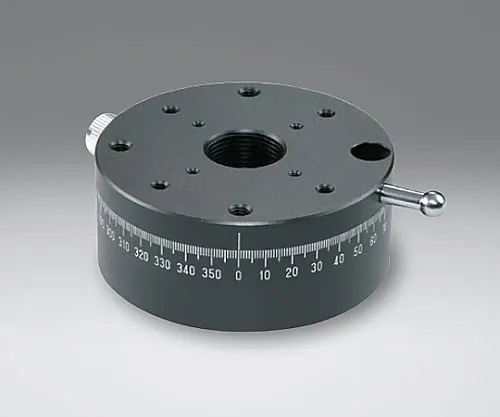

61-6978-05 Θ Axis Coarse Stage Φ60mm Lapping Method KSC-606
Product Description
Product Model: 61-6978-05Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6978-05
Product Brand: SIGMAKOKI CO., LTD.
Features
- You can rotate it by 360° (rough) by turning the handle on the top surface.
- The main body of the stage is made of aluminum, making it ideal for weight reduction.
Spec
- [<θ axis coarse stage> common specification]
- Movement guide: Lapping method
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- [Individual specification]
- Table surface size: φ60mm
- Rotation range: 360°
- Scale minimum reading: 1°
- Movement amount of 1 rotation: ?
- Movement guide: Lapping method
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- Withstand load: 68.6N (7.0kgf)
- Maximum moment capacity: ?
- Moment stiffness: 1.5″/N・cm
- Parallelism: 50μm
- Eccentricity: 20μm
- Wobble: 20μm
- Mass: 0.19kg
- RoHS conform product
