Features

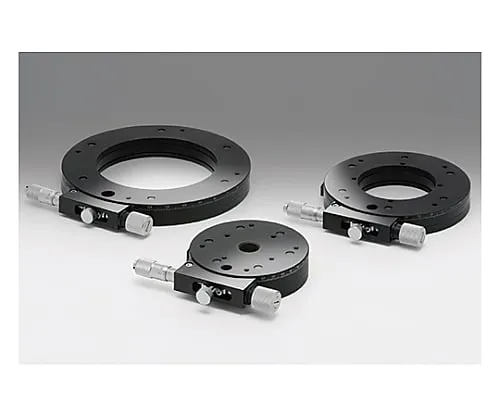

• A grinding type transmission θ axis (rotation) coarse motion stage capable of 360° of coarse motion and fine motion (selection from micrometer head or fine pitch screw).
• For rough movement, the upper surface of the stage is directly rotated, and for fine movement, the rough part is clamped and performed with a micrometer head or fine pitch screw (±3~5°).
• High precision and high rigidity are realized by adopting a cinchew for the stage body and using an iron cross roller.
• The type with a through hole in the center of the stage can be ***d for transmission.
• Products with FP at the *** of the part number *** fine pitch screws.
• Please **** that this is not an ordinary micrometer head.
• When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
