Features

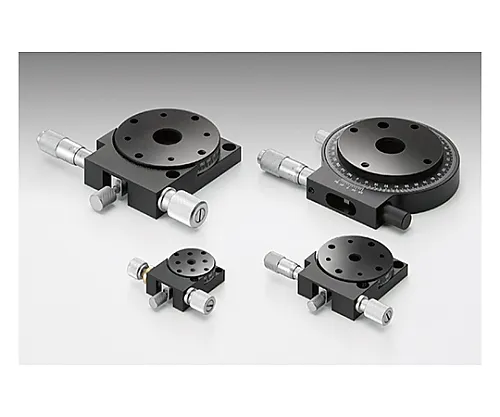

• It is a grinding type θ axis (rotation) coarse motion stage that can rotate 360° of coarse motion and fine motion (selection from micrometer head or fine pitch screw).
• For rough movement, the upper surface of the stage is directly rotated, and for fine movement, the rough part is clamped and performed with a micrometer head or fine pitch screw (±5°).
• The KSP ***s shinchu for the stage body to provide high rigidity.
• (Only KSP-786M**, Main material: aluminum, Surface treatment: black anodized.)
• The through hole in the center of the stage can be ***d for the through hole.
• Can be attached to various stages by converting the mounting holes using the KSP/KSPA top spacer SP-103.
• It can be attached to a magnet base or □ 60 mm stage (M4 50 x 50) by converting the mounting hole using the KSP-786M dedicated lower spacer SP-104.
• Products with FP at the *** of the part number *** fine pitch screws.
• Please **** that this is not an ordinary micrometer head.
• When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
