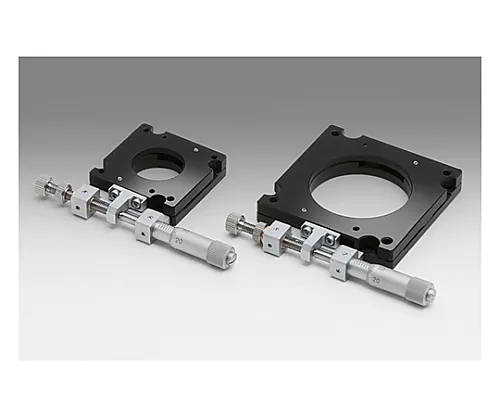

61-6977-55 Θ Axis Tremor Stage for Transmission (Square, Thin Type) Size 40 x 40mm KSPT-406MH
Analyzer, Testing Equipment

61-6977-55 Θ Axis Tremor Stage for Transmission (Square, Thin Type) Size 40 x 40mm KSPT-406MH

model: 61-6977-55
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6977-55Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6977-55
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A rectangular θ-axis (rotation) stage with a transmission hole that achieves a stage thickness of 10 mm.
  • It maintains the same rigidity as TSD and is resistant to uneven loads, so it can be flexibly adapted to any installation direction (vertical mounting or ceiling mounting).
  • It is ideal for incorporating devices that require slight angle adjustment and for building optical systems with a low optical axis, taking advantage of the convenience of its thin profile.
  • A thin X-axis steel stage (TSDT) with a stage thickness of 10 mm is also available.
  • Opposite clamps are standard.
  • Products with FP at the *** of the part number *** fine pitch screws.
  • Please **** that this is not an ordinary micrometer head.
  • When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
  • * When mounting on a vertical surface, be sure to keep the micrometer head facing down.
  • * Due to the structure, the springs in the stage may not be able to withstand the load and may stretch.

Spec

  • Table surface size: 40 x 40mm
  • Rotation range: ±10°
  • Movement guide: Ball guide
  • Main material: Iron
  • Surface treatment: Black matte
  • Withstand load: 78.4N (8.0kgf)
  • Permissible moment load/pitch: 3.9N・m
  • Permissible moment load/roll: 3.9N・m
  • Permissible moment load/yaw: ?
  • Moment rigidity/pitch: 0.3″/N・cm
  • Moment rigidity/roll: 0.6″/N・cm
  • Moment rigidity/yaw: ?
  • Parallelism: 30μm
  • Eccentricity: 10μm
  • Wobble: 10μm
  • Mass: 0.11kg
  • RoHS conform product
