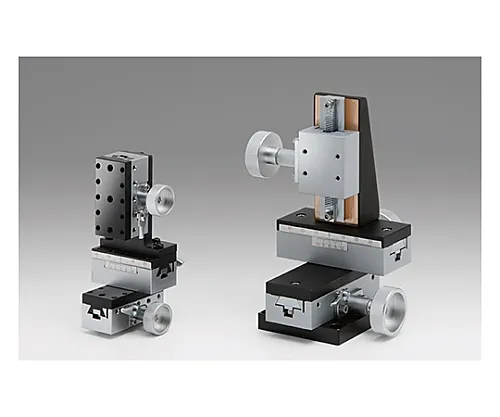

61-6977-51 XYZ Axis Small Rack Pinion Stage (Vertical) Size 25 x 50mm TAR-25505L
Analyzer, Testing Equipment

61-6977-51 XYZ Axis Small Rack Pinion Stage (Vertical) Size 25 x 50mm TAR-25505L

model: 61-6977-51
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6977-51Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6977-51
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Due to the ant groove guide/rack pinion system, this stage is suitable when the frequency of operation is relatively high and the amount of movement is required quickly.
  • ■ How to fix the TAR-25505L
  • Use M3 screws (but only at both ***s) when fixing from the up direction, and *** M4 screws when fixing from the down direction.
  • * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be fixed or the amount of movement may not be secured.

Spec

  • Table surface size: 25 x 50mm
  • Movement amount: XY axis ±10mm, Z axis ±10mm
  • Movement amount/1 rotation: Approx 20mm
  • Vernier scale: 0.1mm
  • Movement guide: Dovetail method
  • Main material: Brass
  • Surface treatment: Super black chrome
  • Withstand load: 9.8N (1.0kgf)
  • Movement accuracy/straightness: 30μm
  • Permissible moment load/pitch: 0.5N・m
  • Permissible moment load/roll: 0.5N・m
  • Permissible moment load/yaw: ?
  • Moment rigidity/pitch: ?
  • Moment rigidity/roll: ?
  • Parallelism: ?
  • Mass: 0.75kg
  • RoHS conform product
