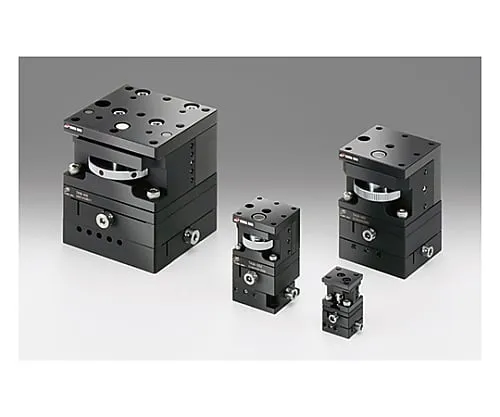

61-6977-42 XYZ Axis Flat Block Stage Size 15 x 15mm TASB-155
Product Description
Product Model: 61-6977-42Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6977-42
Product Brand: SIGMAKOKI CO., LTD.
Features
- This is an XYZ axis stage for adjustment with a horizontal table surface that eliminates protrusions, has a small space type, and is suitable for fine adjustment applications with little frequency of operation.
- Ideal for areas with relatively little frequency of operation or for fine adjustment.
- Since there is no knob part for adjustment, inadvertent misoperation can be prevented, and the protrusion is eliminated as much as possible, and it is suitable for *** in device integration.
- Hex wrench with knob and clamp wrench are included.
Spec
- Table surface size: 15 x 15mm
- Movement amount: XY axis ±2mm, Z axis +2, -0
- Movement guide: Dovetail method
- Main material: Brass
- Surface treatment: Black matte
- Screw pitch: 0.4mm
- Withstand load: 4.9N (0.5kgf)
- Movement accuracy/straightness: 30μm
- Permissible moment load/pitch: ?
- Permissible moment load/roll: ?
- Permissible moment load/yaw: ?
- Moment rigidity/pitch: ?
- Moment rigidity/roll: ?
- Parallelism: 200μm
- Mass: 0.04kg
- RoHS conform product
