61-6977-08 XYZ Axis Aluminum Crossed Roller Stage (Vertical) Size 40 x 40mm TAM-405CL
Product Description
Product Model: 61-6977-08Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6977-08
Product Brand: SIGMAKOKI CO., LTD.
Features

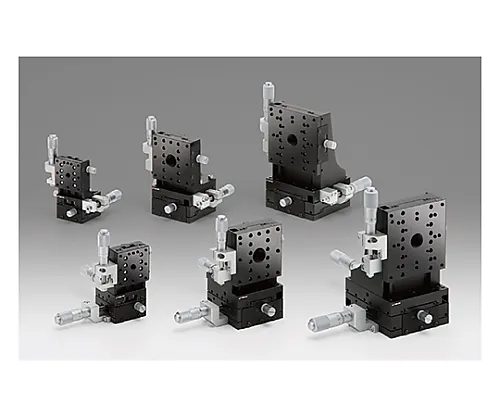

- This stage combines the XY axis stage of the cross roller guide and the Z axis stage of the vertical type.
- A type using fine pitch screw is also available for the feed specification.
Spec
-
[
common specification]
- Table surface size: 40 x 40mm
- Movement amount: XY axis ±6.5mm, Z axis ±6.5mm
- Movement guide: Crossed roller
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- Withstand load: 49N(5.0kgf)
- Movement accuracy/straightness: 2μm
- Permissible moment load/pitch: 2.75N・m
- Permissible moment load/yaw: 3.0N・m
- Moment rigidity/pitch: 1.9″/N・cm
- Table surface size: 60 x 60mm
- Movement amount: XY axis ±6.5mm, Z axis ±6.5mm
- Movement guide: Crossed roller
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- Withstand load: 49N(5.0kgf)
- Movement accuracy/straightness: 2μm
- Permissible moment load/pitch: 5.0N・m
- Permissible moment load/yaw: 5.0N・m
- Moment rigidity/pitch: 0.9″/N・cm
- Table surface size: 65 x 65mm
- Movement amount: XY axis ±6.5mm, Z axis ±6.5mm
- Movement guide: Crossed roller
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- Withstand load: 49N(5.0kgf)
- Movement accuracy/straightness: 2μm
- Permissible moment load/pitch: 5.0N・m
- Permissible moment load/yaw: 5.0N・m
- Moment rigidity/pitch: 0.9″/N・cm
- Table surface size: 80 x 80mm
- Movement amount: XY axis ±7.5mm, Z axis ±6.5mm
- Movement guide: Crossed roller
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- Withstand load: 49N(5.0kgf)
- Movement accuracy/straightness: 2μm
- Permissible moment load/pitch: 7.0N・m
- Permissible moment load/yaw: 7.0N・m
- Moment rigidity/pitch: 0.35″/N・cm
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Withstand load: 49N (5.0kgf)
- Mass: 0.4kg
- RoHS conform product
