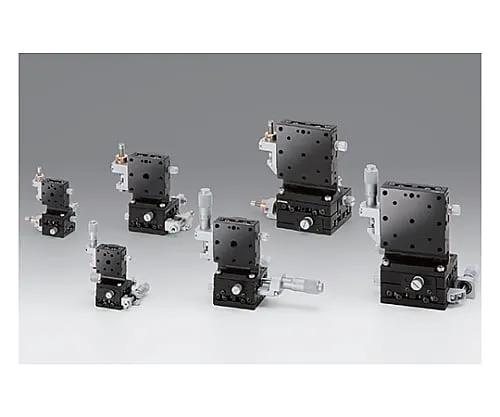

61-6976-95 XYZ Axis Steel Stage (Vertical) Size 65 x 65mm TSD-655CL-M6
Product Description
Product Model: 61-6976-95Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6976-95
Product Brand: SIGMAKOKI CO., LTD.
Features
- This stage combines the X and Z axis stages of the ball guide.
- Stainless steel type (TSDS-655*L) is also available for vacuum applications.
- Products with FP at the *** of the part number *** fine pitch screws.
- Please **** that this is not an ordinary micrometer head.
- When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
Spec
-
[
common specification]
- Table surface size: 65 x 65mm
- Movement amount: XY axis ±6.5mm, Z axis ±6.5mm
- Movement guide: Ball guide
- Main material: Iron
- Surface treatment: Super black chrome
- Withstand load: 49N(5.0kgf)
- Movement accuracy/straightness: 1μm
- Permissible moment load/pitch: 8.0N・m
- Permissible moment load/yaw: 8.0N・m
- Moment rigidity/pitch: 0.58″/N・cm
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Withstand load: 49N (5.0kgf)
- Mass: 1.9kg
- RoHS conform product
