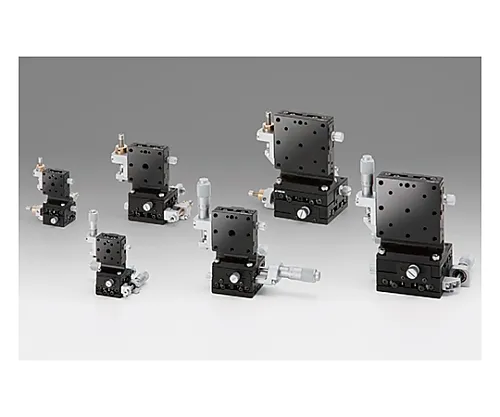

61-6976-77 XYZ Axis Steel Stage (Vertical) Size 40 x 40mm TSD-405CL
Analyzer, Testing Equipment

61-6976-77 XYZ Axis Steel Stage (Vertical) Size 40 x 40mm TSD-405CL

model: 61-6976-77
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6976-77Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6976-77
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This stage combines the X and Z axis stages of the ball guide.
  • Stainless steel type (TSDS-405*L) is also available for vacuum applications.
  • Products with FP at the *** of the part number *** fine pitch screws.
  • Please **** that this is not an ordinary micrometer head.
  • When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.

Spec

  • [

    common specification]
  • Table surface size: 40 x 40mm
  • Movement amount: XY axis ±6.5mm, Z axis ±6.5mm
  • Movement guide: Ball guide
  • Main material: Iron
  • Surface treatment: Super black chrome
  • Withstand load: 49N(5.0kgf)
  • Movement accuracy/straightness: 1μm
  • Permissible moment load/pitch: 5.0N・m
  • Permissible moment load/yaw: 5.0N・m
  • Moment rigidity/pitch: 1.1″/N・cm
  • [Individual specification]
  • Micro operation position: Center
  • Movement amount/1 rotation: 0.5mm
  • Micrometer minimum reading: 0.01mm
  • Withstand load: 49N (5.0kgf)
  • Mass: 0.6kg
  • RoHS conform product
