61-6976-14 XYZ Axis Flat Steel Stage Size 25 x 25mm TSD-255CFP TSD-255C
Analyzer, Testing Equipment

61-6976-14 XYZ Axis Flat Steel Stage Size 25 x 25mm TSD-255CFP TSD-255C

model: 61-6976-14
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6976-14Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6976-14
Product Brand: SIGMAKOKI CO., LTD.

Features

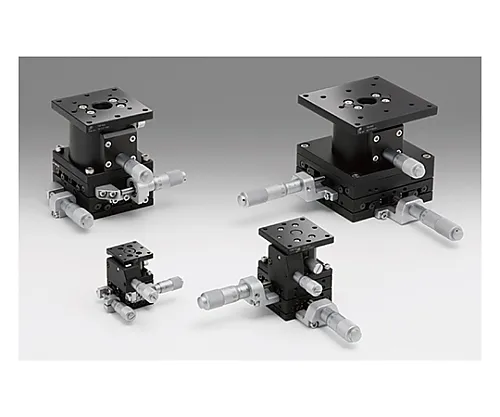

  • This stage combines the ball guide XY axis stage and the flat Z axis stage.
  • Stainless steel type (TSDS-255*) is also available for vacuum applications.
  • Products with FP at the *** of the part number *** fine pitch screws.
  • Please **** that this is not an ordinary micrometer head.
  • When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
  • The amount of movement of the TSD-255C (CFP) toward the Y-axis micrometer head may be less than 3 mm. (Refer to the outline drawing parenthesis dimension (3)) * * Due to the structure of the Z-axis, the spring in the stage may not be able to withstand the load and may stretch out. Therefore, it is not possible to install and *** the Z-axis in the reversed direction.
  • * Since the Z-axis is constructed by applying the principle of leverage, the feed amount relative to the scale is shifted (about ±0.02 mm for 0.5 mm/1 rotation of the micrometer head) dep***ing on the position of the moving amount.

Spec

  • [

    common specification]
  • Table surface size: 25 x 25mm
  • Movement amount: XY axis ±3mm, Z axis ±3mm
  • Movement guide: Ball guide
  • Main material: Iron
  • Surface treatment: Super black chrome + black brushed
  • Movement accuracy/straightness: 5μm
  • Permissible moment load/pitch: 1.0N・m
  • Permissible moment load/roll: 1.0N・m
  • Moment rigidity/pitch: 10.55″/N・cm
  • Moment rigidity/roll: 10.55″/N・cm
  • Parallelism: 130μm
  • [Individual specification]
  • Micro operation position: Center
  • Movement amount/1 rotation: 0.5mm
  • Micrometer minimum reading: 0.01mm
  • Withstand load: 29.4N (3.0kgf)
  • Mass: 0.2kg
  • RoHS conform product
