61-6976-12 XZ Axis Coarse/Fine Flat Rack Pinion Stage Size 60 x 60mm TAR-60554D
Analyzer, Testing Equipment

61-6976-12 XZ Axis Coarse/Fine Flat Rack Pinion Stage Size 60 x 60mm TAR-60554D

model: 61-6976-12
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6976-12Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6976-12
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This is an XZ axis stage of an ant groove guide which can adjust rough and fine motion driven by a rack pinion.
  • It is suitable for relatively frequent movements that require fast movements and long strokes.
  • It is effective for equipment installation.
  • * It may protrude from the upper surface of the stage dep***ing on the parts fixing the feed screw and handle and the type of micrometer head.
  • * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be fixed or the amount of movement may not be secured.

Spec

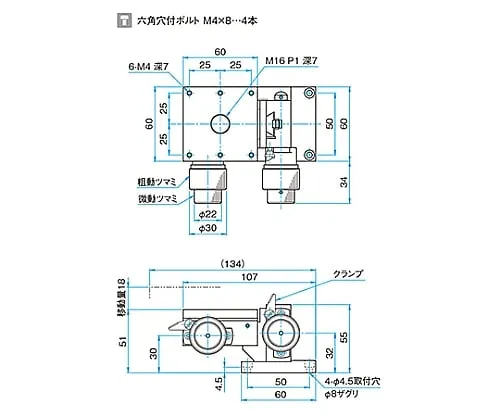

  • Table surface size: 60 x 60mm
  • Movement amount: X axis +27mm, -0, Z axis +18mm, -0
  • Movement amount/1 rotation: Coarse: Approximately 20mm, fine: Approx 2.5mm
  • Vernier scale: 0.1mm
  • Movement guide: Dovetail method
  • Main material: Brass
  • Surface treatment: Super black chrome
  • Withstand load: 24.5N (2.5kgf)
  • Movement accuracy/straightness: 30μm
  • Permissible moment load/pitch: 0.4N・m
  • Permissible moment load/roll: 0.5N・m
  • Permissible moment load/yaw: ?
  • Moment rigidity/pitch: ?
  • Moment rigidity/roll: ?
  • Parallelism: ?
  • Mass: 0.83kg
  • RoHS conform product
