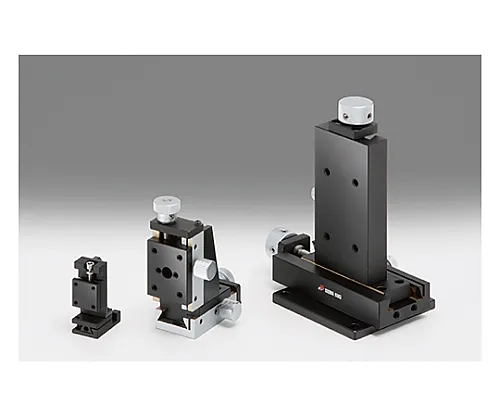

61-6976-06 XZ Axis Screw Feed Stage (Vertical) Size 24 x 30mm TAS-24304L
Product Description
Product Model: 61-6976-06Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6976-06
Product Brand: SIGMAKOKI CO., LTD.
Features
- This XZ axis stage ***s the ant groove guide/screw feed adjustment method and is suitable for small adjustment applications with little operation frequency.
- Excellent operability with feed handle.
- The TAS-154L is operated with a hexagonal wrench.
- * Note that the TAS-154L does not have a clamping mechanism.
- * It may protrude from the upper surface of the stage dep***ing on the parts fixing the feed screw and handle and the type of micrometer head.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be fixed or the amount of movement may not be secured.
Spec
- Table surface size: 24 x 30mm
- Movement amount: X axis ±4mm, Z axis ±4mm
- Movement amount/1 rotation: 0.5mm
- Vernier scale: ?
- Movement guide: Dovetail method
- Main material: Brass
- Surface treatment: Super black chrome
- Withstand load: 4.9N (0.5kgf)
- Movement accuracy/straightness: 20μm
- Permissible moment load/pitch: 0.5N・m
- Permissible moment load/roll: 0.2N・m
- Permissible moment load/yaw: ?
- Moment rigidity/pitch: ?
- Moment rigidity/roll: ?
- Parallelism: ?
- Mass: 0.42kg
- RoHS conform product
