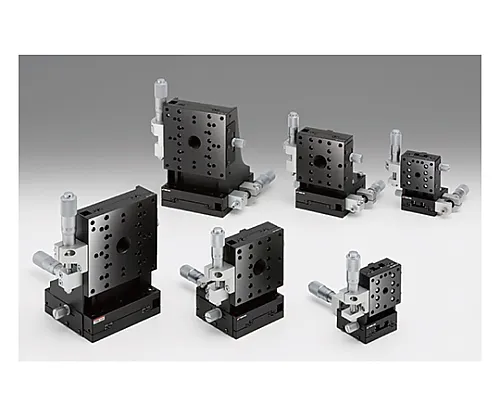

61-6975-64 XZ Axis Aluminum Crossed Roller Stage (Vertical) Size 40 x 40mm TAM-404CL
Product Description
Product Model: 61-6975-64Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6975-64
Product Brand: SIGMAKOKI CO., LTD.
Features
- A lightweight Z-axis aluminum stage that integrates the stage body and the Z-axis bracket is combined with the X-axis aluminum stage.
- A cross roller is ***d for the movement guide to provide smooth movement.
- A type using fine pitch screw is also available for the feed specification.
Spec
-
[
common specification]
- Table surface size: 40 x 40mm
- Movement amount: X axis ±6.5mm, Z axis ±6.5mm
- Movement guide: Crossed roller
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- Withstand load: 49N(5.0kgf)
- Movement accuracy/straightness: 2μm
- Permissible moment load/pitch: 2.75N・m
- Permissible moment load/yaw: 3.0N・m
- Moment rigidity/pitch: 1.4″/N・cm
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Withstand load: 49N (5.0kgf)
- Mass: 0.3kg
- RoHS conform product
