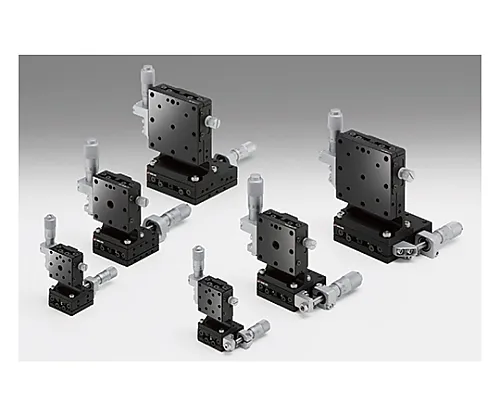

61-6975-46 XZ Axis Steel Stage (Vertical) Size 60 x 60mm TSD-604CL
Product Description
Product Model: 61-6975-46Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6975-46
Product Brand: SIGMAKOKI CO., LTD.
Features
- This stage combines the X and Z axis stages of the ball guide.
- Please **** that this is not an ordinary micrometer head.
- When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
Spec
-
[
common specification]
- Table surface size: 60 x 60mm
- Movement amount: X axis ±6.5mm, Z axis ±6.5mm
- Movement guide: Ball guide
- Main material: Iron
- Surface treatment: Super black chrome
- Withstand load: 49N(5.0kgf)
- Movement accuracy/straightness: 1μm
- Permissible moment load/pitch: 8.0N・m
- Permissible moment load/yaw: 8.0N・m
- Moment rigidity/pitch: 0.45″/N・cm
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Withstand load: 49N (5.0kgf)
- Mass: 1.3kg
- RoHS conform product
