Electronic/Electrical Parts and Controll Equipments

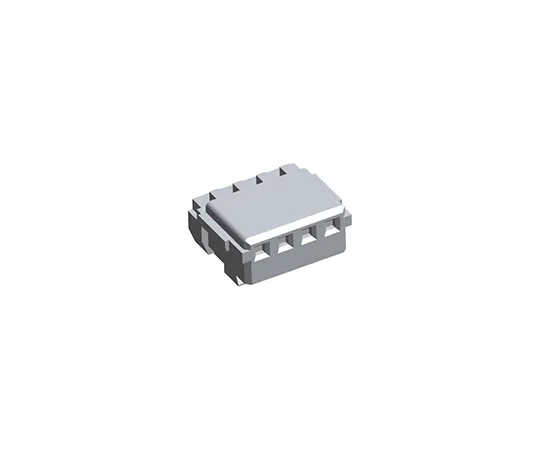

63-4952-02 TE Connectivity 4-Way IDC Connector Socket for Cable Mount, 1-Row 353293-4
model:
63-4952-02
brand:
TE Connectivity
Product Description
Product Model: 63-4952-02Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4952-02
Product Brand: TE Connectivity
Features
- TE Connectivity 1.5mm MT Pre-Loaded Receptacle Housings - Mini CT Series. Mini CT series receptacle style single row MT (mass termination) IDC wire connector housings with a 1.50mm centreline. These receptacle style IDC MT wire connector housings are made from UL 94V-0 nylon, have phosphor bronze pre-tin plated dual beam socket contacts and accept a wire size of 22 to 28 AWG. For suitable mating products see stock numbers ; 706-8139 706-8139 and ; 718-9563 718-9563 typically.
Spec
- Quantity：1bag(25pieces)
- Number of Contacts : 4
- Number of Rows : 1
- G***er : Female
- Pitch : 1.5mm
- Mounting Type : Cable Mount
- Body Orientation : Straight
- Termination Method : IDC
- Current Rating : 2A
- Contact Plating : Tin over Nickel
- Series : AMP Mini CT
- Minimum Operating Temperature : -30°C
- Maximum Operating Temperature : +105°C
- Voltage Rating : 50 V ac, 50 V dc
- Contact Material : Phosphor Bronze
- CODE No.:683-1699
