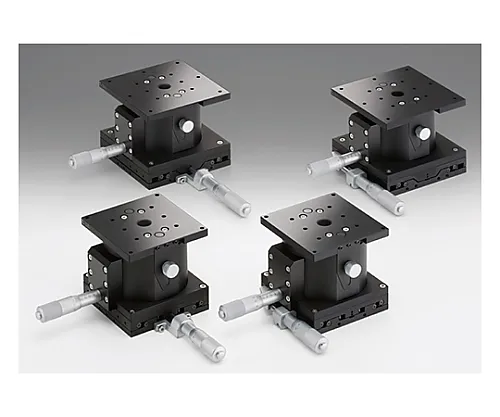

61-6975-19 XZ Axis Flat Steel Stage Size 120 x 120mm TSD-1204C
Product Description
Product Model: 61-6975-19Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6975-19
Product Brand: SIGMAKOKI CO., LTD.
Features
- An XZ axis stage that combines the X axis and flat Z axis stages of a ball guide.
- * Due to the structure of the Z-axis, the springs in the stage may not be able to withstand the load and may stretch out, so it is not possible to install and *** the Z-axis in the reverse direction.
- * Since the Z-axis is constructed by applying the principle of leverage, the feed amount relative to the scale is shifted (about ±0.02 mm for 0.5 mm/1 rotation of the micrometer head) dep***ing on the position of the moving amount.
Spec
-
[
common specification]
- Table surface size: 120 x 120mm
- Movement amount: X axis ±20mm, Z axis ±5mm
- Movement guide: Ball guide
- Main material: Iron
- Surface treatment: Super black chrome + black brushed
- Movement accuracy/straightness: 2.5μm
- Permissible moment load/pitch: 9.8N・m
- Permissible moment load/roll: 9.8N・m
- Moment rigidity/pitch: 0.4″/N・cm
- Moment rigidity/roll: 0.38″/N・cm
- Parallelism: 150μm
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Withstand load: 245N (25.0kgf)
- Mass: 6.2kg
- RoHS conform product
