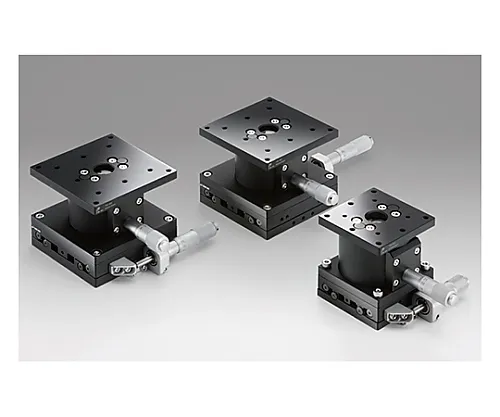

61-6975-07 XZ Axis Flat Steel Stage Size 80 x 80mm TSD-804C
Product Description
Product Model: 61-6975-07Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6975-07
Product Brand: SIGMAKOKI CO., LTD.
Features
- An XZ axis stage that combines the X axis and flat Z axis stages of a ball guide.
- Please **** that this is not an ordinary micrometer head.
- When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
- * Due to the structure of the Z-axis, the springs in the stage may not be able to withstand the load and may stretch out, so it is not possible to install and *** the Z-axis in the reverse direction.
- * Since the Z-axis is constructed by applying the principle of leverage, the feed amount relative to the scale is shifted (about ±0.02 mm for 0.5 mm/1 rotation of the micrometer head) dep***ing on the position of the moving amount.
Spec
-
[
common specification]
- Table surface size: 80 x 80mm
- Movement amount: X axis ±12.5mm, Z axis ±5mm
- Movement guide: Ball guide
- Main material: Iron
- Surface treatment: Super black chrome + black brushed
- Movement accuracy/straightness: 2.5μm
- Permissible moment load/pitch: 6.9N・m
- Permissible moment load/roll: 6.9N・m
- Moment rigidity/pitch: 0.61″/N・cm
- Moment rigidity/roll: 0.57″/N・cm
- Parallelism: 110μm
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Withstand load: 147N (15.0kgf)
- Mass: 2.1kg
- RoHS conform product
