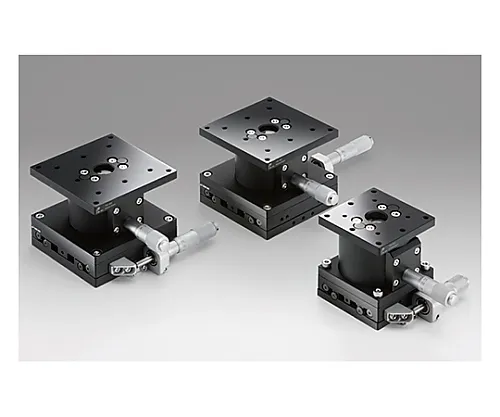

61-6974-76 XZ Axis Flat Steel Stage Size 40 x 40mm TSD-404C
Product Description
Product Model: 61-6974-76Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6974-76
Product Brand: SIGMAKOKI CO., LTD.
Features
- An XZ axis stage that combines the X axis and flat Z axis stages of a ball guide.
- Stainless steel type (TSDS-404) is also available for vacuum applications.
- Products with FP at the *** of the part number *** fine pitch screws.
- Please **** that this is not an ordinary micrometer head.
- When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
- * Due to the structure of the Z-axis, the springs in the stage may not be able to withstand the load and may stretch out, so it is not possible to install and *** the Z-axis in the reverse direction.
- * Since the Z-axis is constructed by applying the principle of leverage, the feed amount relative to the scale is shifted (about ±0.02 mm for 0.5 mm/1 rotation of the micrometer head) dep***ing on the position of the moving amount.
Spec
-
[
common specification]
- Table surface size: 40 x 40mm
- Movement amount: X axis ±6.5mm, Z axis ±3mm
- Movement guide: Ball guide
- Main material: Iron
- Surface treatment: Super black chrome + black brushed
- Movement accuracy/straightness: 2.5μm
- Permissible moment load/pitch: 3.9N・m
- Permissible moment load/roll: 3.9N・m
- Moment rigidity/pitch: 2.14″/N・cm
- Moment rigidity/roll: 2.04″/N・cm
- Parallelism: 110μm
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Withstand load: 88.3N (9.0kgf)
- Mass: 0.45kg
- RoHS conform product
