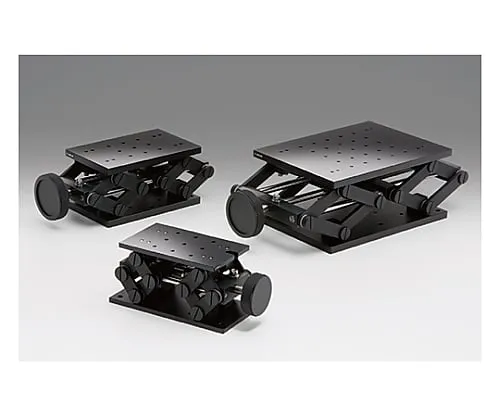

61-6974-46 Precision Lab Jack Size 80 x 132mm LJ-80133
Analyzer, Testing Equipment

61-6974-46 Precision Lab Jack Size 80 x 132mm LJ-80133

model: 61-6974-46
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6974-46Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6974-46
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This Z-axis precision stage achieves extremely high degree of parallelism thanks to the company's unique adjustment technology.
  • For the LJ type, the upper and lower plates are made of iron (magnet base can be detached), and for the LJA, the upper and lower plates are made of aluminum (lightweight).
  • Since the movement mechanism is pantograph type, the amount of movement per rotation of the adjustment handle changes.
  • By rotating the adjustment handle, you can adjust the height direction while maintaining the plane of the table face.
  • The clamp can be firmly fixed beca*** it is cracked.
  • You can adjust the height using a dedicated spacer set (LJS).
  • A special top plate (LJP) can also be ***d to load larger samples.
  • An αβ axis tilt stage (AIS) of the same size as the stage surface of the lab jack can also be installed.

Spec

  • Table surface size: 80 x 132mm
  • Movement amount: 22mm
  • Main material: Iron
  • Surface treatment: Super black chrome
  • Withstand load: 196N (20.0kgf)
  • Permissible moment load/pitch: 29.4N・m
  • Permissible moment load/roll: 2.9N・m
  • Parallelism: 100μm
  • Mass: 3.1kg
  • RoHS conform product
