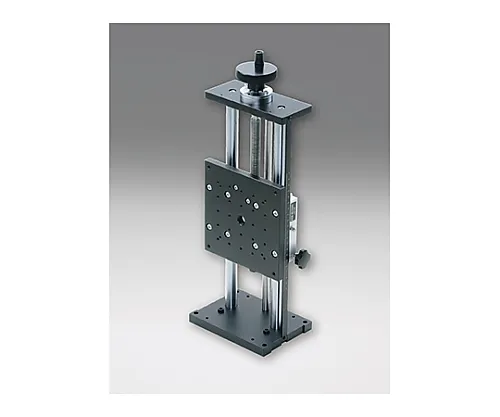

61-6974-40 Z Axis Coarse Long Adjustment Unit Size 160 x 160mm LSV-16100L
Analyzer, Testing Equipment

61-6974-40 Z Axis Coarse Long Adjustment Unit Size 160 x 160mm LSV-16100L

model: 61-6974-40
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6974-40Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6974-40
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This is a long type screw feed stage for Z-axis adjustment that can be greatly adjusted.
  • It is suitable for adjustment that requires large vertical movement with relatively little operation frequency.
  • The adjustment is performed with the adjustment handle.
  • The taps on the top of the table can also be ***d in combination with other micromotion stages.

Spec

  • [

    common specification]
  • Table surface size: 160 x 160mm
  • Screw pitch: 2mm
  • Vernier minimum reading: 1mm
  • Movement guide: Linear bearing
  • Main material: Aluminum
  • Surface treatment: Black anodic oxide
  • Withstand load: 78.4N (8.0kgf)
  • Movement accuracy/straightness: 10μm
  • Permissible moment load/pitch: 4.9N・m
  • [Individual specification]
  • Movement amount: ±50mm
  • Moment rigidity/pitch: 0.36″/N・cm
  • Mass: 4.7kg
  • RoHS conform product
