61-6974-38 Z Axis Coarse/Fine Flat Rack Pinion Stage Size 60 x 60mm TAR-60553D
Product Description
Product Model: 61-6974-38Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6974-38
Product Brand: SIGMAKOKI CO., LTD.
Features
- Z axis stage of ant groove guide which can adjust rough and fine motion driven by rack pinion.
- It is suitable for relatively frequent movements that require fast movements and long strokes.
- It is effective for equipment installation.
- * It may protrude from the upper surface of the stage dep***ing on the parts fixing the feed screw and handle and the type of micrometer head.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be fixed or the amount of movement may not be secured.

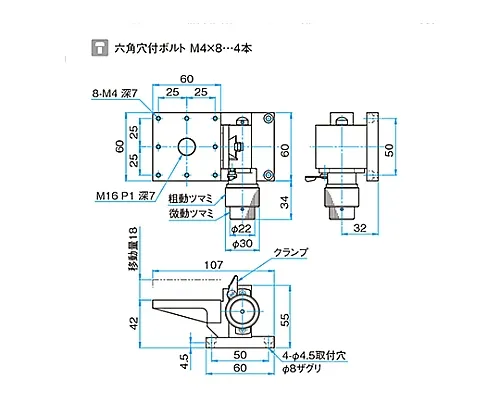

Spec
-
[
common specification]
- Table surface size: 60 x 60mm
- Movement guide: Rack pinion
- Main material: Brass, aluminum
- Surface treatment: Super black chrome, black anodic oxide
- Movement amount/1 rotation: Coarse: About 20/rotation, fine: About 2.5/rotation
- Parallelism: 0.08mm
- Movement accuracy/straightness: 0.02mm
- Display resolution: 0.1mm
- Sensitivity: 0.02mm
- Maximum moment Fx': 1.5″/N・cm
- Maximum moment Fy': 1.0″/N・cm
- [Individual specification]
- Table surface size: 60 x 60mm
- Movement amount: Coarse: +18mm, -0mm, fine: +18mm, -0mm, fine
- Movement amount/1 rotation: Coarse: Approximately 20mm, fine: Approx 2.5mm
- Vernier minimum reading: 0.1mm
- Movement guide: Dovetail method
- Main material: Brass
- Surface treatment: Super black chrome
- Withstand load: 14.7N (1.5kgf)
- Movement accuracy/straightness: 20μm
- Permissible moment load/pitch: 1.5N・m
- Permissible moment load/roll: 1.0N・m
- Moment rigidity/pitch: 0.61″/N・cm
- Parallelism: 80μm
- Mass: 0.55kg
- RoHS conform product
