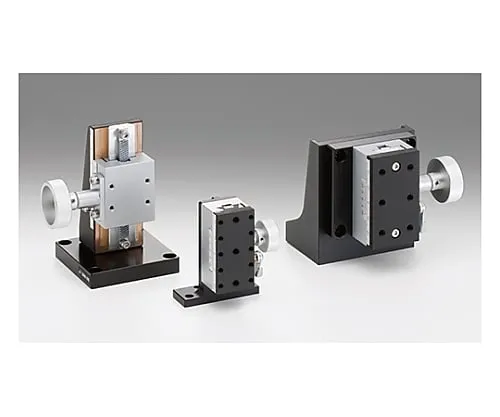

61-6974-33 Z Axis Small Rack Pinion Stage (Vertical) TARW-25503L
Analyzer, Testing Equipment

61-6974-33 Z Axis Small Rack Pinion Stage (Vertical) TARW-25503L

model: 61-6974-33
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6974-33Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6974-33
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This Z-axis rack pinion stage is ideal when you need to move quickly and move a lot.

Spec

  • Table surface size: 25 x 50mm
  • Movement amount: ±10mm
  • Movement amount/1 rotation: Approx 20mm
  • Vernier minimum reading: 0.1mm
  • Movement guide: Dovetail method
  • Main material: Brass
  • Surface treatment: Super black chrome
  • Withstand load: 9.8N (1.0kgf)
  • Movement accuracy/straightness: 30μm
  • Permissible moment load/pitch: 0.6N・m
  • Permissible moment load/roll: 0.5N・m
  • Moment rigidity/pitch: 1.53″/N・cm
  • Squareness: 50μm
  • Mass: 0.3kg
  • RoHS conform product
