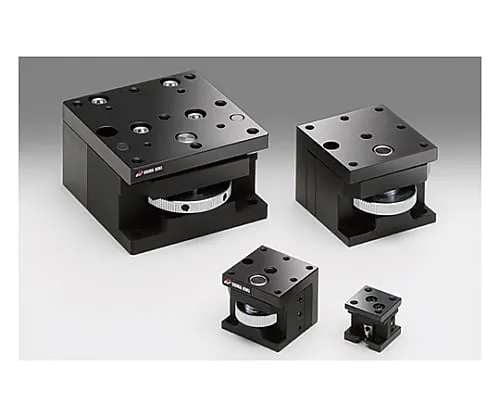

61-6974-26 Z Axis Flat Block Stage Size 15 x 15mm TASB-153
Analyzer, Testing Equipment

61-6974-26 Z Axis Flat Block Stage Size 15 x 15mm TASB-153

model: 61-6974-26
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6974-26Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6974-26
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A Z-axis stage for adjustment with a horizontal table surface that eliminates protrusions and has a small space type, and is suitable for fine adjustment applications with little frequency of operation.
  • Ideal for areas with relatively little frequency of operation or for fine adjustment.
  • Since there is no knob part for adjustment, inadvertent misoperation can be prevented, and the protrusion is eliminated as much as possible, and it is suitable for *** in device integration.
  • Hex wrench with knob and clamp wrench are included.

Spec

  • Table surface size: 15 x 15mm
  • Movement amount: +2・-0
  • Movement guide: Dovetail method
  • Main material: Brass
  • Surface treatment: Super black chrome
  • Screw pitch: 0.4mm
  • Withstand load: 4.9N (0.5kgf)
  • Movement accuracy/straightness: 30μm
  • Permissible moment load/pitch: ?
  • Permissible moment load/roll: ?
  • Permissible moment load/yaw: ?
  • Moment rigidity/pitch: ?
  • Moment rigidity/roll: ?
  • Parallelism: 100μm
  • Mass: 0.012kg
  • RoHS conform product
