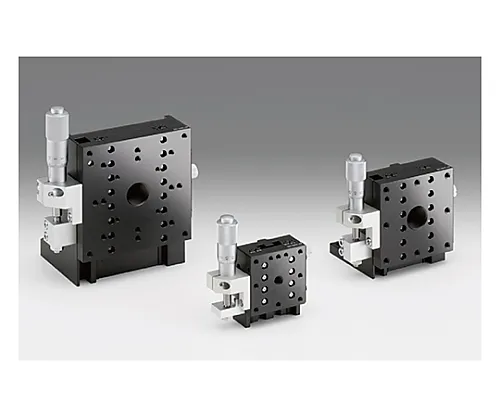

61-6973-75 Z Axis Aluminum Crossed Roller Stage (Vertical) Size 40 x 40mm TAM-403L
Product Description
Product Model: 61-6973-75Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6973-75
Product Brand: SIGMAKOKI CO., LTD.
Features
- Lightweight Z-axis aluminum stage with integrated stage body and Z-axis bracket.
- A cross roller is ***d for the movement guide to provide smooth movement.
- Please **** that this is not an ordinary micrometer head.
- When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
Spec
-
[
common specification]
- Table surface size: 40 x 40mm
- Movement guide: Ball guide
- Main material: Iron
- Surface treatment: Super black chrome
- Withstand load: 49N(5.0kgf)
- Movement accuracy/straightness: 2μm
- Permissible moment load/pitch: 3.0N・m
- Permissible moment load/roll: 3.0N・m
- Moment rigidity/pitch: 0.66″/N・cm
- Movement parallelism: 20μm
- Squareness: 30μm
- [Individual specification]
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Mass: 0.15kg
- RoHS conform product
