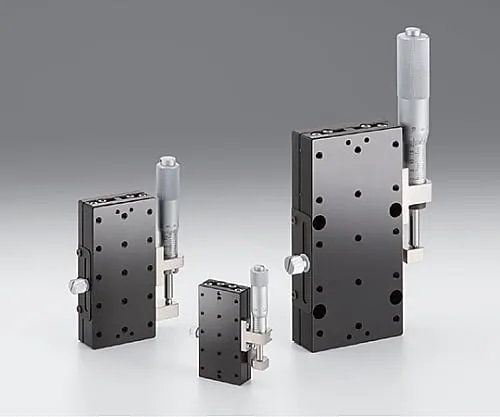

61-6973-69 Z Axis Long Steel Stage (Mounting Vertical Surface) Size 25 x 50mm TSD-25501SZ
Analyzer, Testing Equipment

61-6973-69 Z Axis Long Steel Stage (Mounting Vertical Surface) Size 25 x 50mm TSD-25501SZ

model: 61-6973-69
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6973-69Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6973-69
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This Z-axis stage is specially designed for vertical surface mounting, in which the micrometer head is mounted on the lower surface side of the stage.
  • The long type is ***ful when the stage face is rectangular and you want to ensure a long movement.
  • It is a very durable stage with direct guide processing on the quenched steel stage body and moving table.

Spec

  • Table surface size: 25 x 50mm
  • Movement amount: ±6.5mm
  • Movement amount/1 rotation: 0.5mm/rotation
  • Micrometer minimum reading: 0.01mm
  • Movement guide: Ball guide
  • Main material: Iron
  • Surface treatment: Super black chrome
  • Withstand load: 9.8N (1.0kgf)
  • Movement accuracy/straightness: 2μm
  • Permissible moment load/pitch: 2.0N・m
  • Permissible moment load/roll: 1.4N・m
  • Moment rigidity/pitch: 1.12″/N・cm
  • Movement parallelism: 10μm
  • Mass: 0.1kg
  • RoHS conform product
