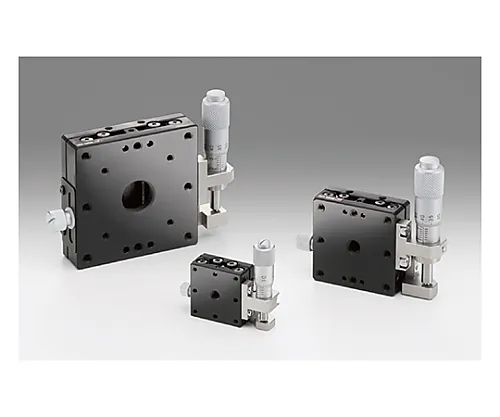

61-6973-49 Z Axis Steel Stage Size 25 x 25mm TSD-251SZ
Analyzer, Testing Equipment

61-6973-49 Z Axis Steel Stage Size 25 x 25mm TSD-251SZ

model: 61-6973-49
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6973-49Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6973-49
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This Z-axis stage is specially designed for vertical surface mounting, with a microplate attached to the lower surface of the stage to move the micrometer head.
  • It is a very durable stage with direct guide processing on the quenched steel stage body and moving table.
  • We also have products with long table surfaces.
  • Please **** that this is not an ordinary micrometer head.
  • When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.

Spec

  • [

    common specification]
  • Table surface size: 25 x 25mm
  • Movement amount: ±3mm
  • Movement guide: Ball guide
  • Main material: Iron
  • Surface treatment: Super black chrome
  • Withstand load: 14.7N(1.5kgf)
  • Movement accuracy/straightness: 1μm
  • Permissible moment load/pitch: 2.2N・m
  • Permissible moment load/roll: 2.1N・m
  • Moment rigidity/pitch: 1.63″/N・cm
  • Movement parallelism: 10μm
  • [Individual specification]
  • Movement amount/1 rotation: 0.5mm
  • Micrometer minimum reading: 0.01mm
  • Mass: 0.07kg
  • RoHS conform product
