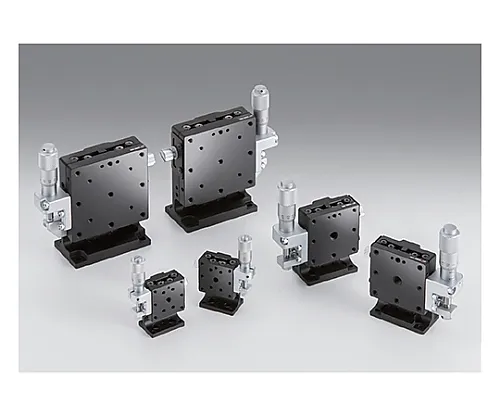

61-6972-92 Z Axis Steel Stage (Vertical) Size 25 x 25mm TSD-253L
Product Description
Product Model: 61-6972-92Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6972-92
Product Brand: SIGMAKOKI CO., LTD.
Features
- This Z-axis stage integrates the stage body and the Z-axis bracket.
- It is a very durable stage with direct guide processing on the quenched steel stage body and moving table.
- Products with FP at the *** of the part number *** fine pitch screws.
- Please **** that this is not an ordinary micrometer head.
- When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
Spec
-
[
common specification]
- Table surface size: 25 x 25mm
- Movement amount: ±3mm
- Movement guide: Ball guide
- Main material: Iron
- Surface treatment: Super black chrome
- Withstand load: 14.7N(1.5kgf)
- Movement accuracy/straightness: 1μm
- Movement accuracy/pitching: 30″
- Movement accuracy/yawing: 25″
- Permissible moment load/pitch: 2.2N・m
- Permissible moment load/roll: 3.5N・m
- Permissible moment load/yaw: 2.0N・m
- Moment rigidity/pitch: 1.8″/N・cm
- Moment rigidity/roll: 1.1″/N・cm
- Moment rigidity/yaw: 1.1″/N・cm
- Movement parallelism: 15μm
- Squareness: 30μm
- [Individual specification]
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Mass: 0.1kg
- RoHS conform product
