61-6972-61 Z Axis Flat Steel Stage Size 25 x 25mm TSD-253
Analyzer, Testing Equipment

61-6972-61 Z Axis Flat Steel Stage Size 25 x 25mm TSD-253

model: 61-6972-61
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6972-61Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6972-61
Product Brand: SIGMAKOKI CO., LTD.

Features

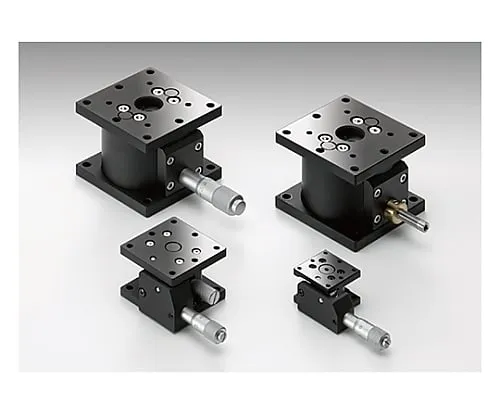

  • This Z-axis stage ***s the principle of leverage to transfer horizontal micrometer operations to vertical movement.
  • Since it moves in contact with the R groove of the guide by 4 points of the steel ball, it is stable in all directions and can adjust the height with high accuracy.
  • Table faces that you move up and down will move more smoothly and horizontally.
  • Stainless steel type (TSDS) is available for vacuum applications.
  • Products with FP at the *** of the part number *** fine pitch screws.
  • Please **** that this is not an ordinary micrometer head.
  • When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
  • * Due to its structure, the springs in the stage may not be able to withstand the load and may stretch out, so it is not possible to install and *** the stage in the direction of the reverse direction.
  • * Due to the structure applying the principle of leverage, there is a deviation (about ±0.02 mm per 0.5 mm/1 rotation of the micrometer head) in the feed amount relative to the scale dep***ing on the position of the moving amount.

Spec

  • Table surface size: 25 x 25mm
  • Movement amount: ±3mm
  • Movement amount/1 rotation: 0.5mm
  • Micrometer minimum reading: 0.01mm
  • Movement guide: Ball guide
  • Main material: Iron
  • Surface treatment: Black matte
  • Withstand load: 29.4N (3.0kgf)
  • Movement accuracy/straightness: 5μm
  • Movement accuracy/pitching: ?
  • Movement accuracy/yawing: ?
  • Permissible moment load/pitch: 1.0N・m
  • Permissible moment load/roll: 1.0N・m
  • Permissible moment load/yaw: ?
  • Moment rigidity/pitch: 5.0″/N・cm
  • Moment rigidity/roll: 5.0″/N・cm
  • Moment rigidity/yaw: ?
  • Parallelism: 80μm
  • Movement parallelism: 15μm
  • Mass: 0.1kg
  • RoHS conform product
