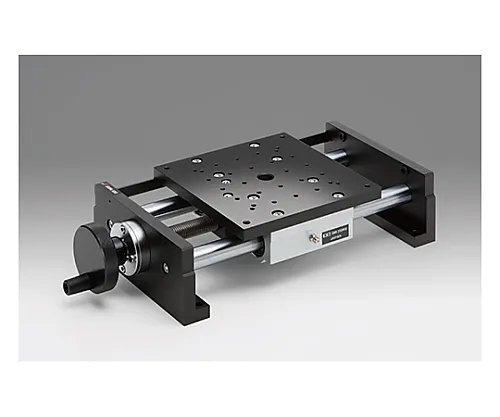

61-6972-52 X Axis Coarse Long Adjustment Unit Size 160 x 160mm LST-16100
Analyzer, Testing Equipment

61-6972-52 X Axis Coarse Long Adjustment Unit Size 160 x 160mm LST-16100

model: 61-6972-52
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6972-52Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6972-52
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Long stroke type screw feed stage for X-axis direction adjustment.
  • The moving guide is a linear bearing, and the feed screw is 2 mm pitch (LST-16100/16200) or 5 mm pitch (LST-16400), which is suitable for adjustment that requires relatively little operation frequency and long movement.
  • The steering wheel is ***d for adjustment.
  • There is a scale on the side of the stage with a minimum reading of 1 mm.
  • The taps on the top of the table can also be ***d in combination with other micromotion stages.

Spec

  • [

    common specification]
  • Table surface size: 160 x 160mm
  • Movement guide: Linear bearing
  • Main material: Aluminum
  • Surface treatment: Black anodic oxide
  • Withstand load: 98N(10.0kgf)
  • Movement accuracy/straightness: 10μm (20μm for LST-16400 type)
  • Permissible moment load/pitch: 7.8N・m
  • Permissible moment load/roll: 5.8N・m
  • Moment rigidity/pitch: 0.25″/N・cm
  • Moment rigidity/roll: 0.5″/N・cm
  • [Individual specification]
  • Movement amount: ±50mm
  • Screw pitch: 2mm
  • Parallelism: 100μm
  • Mass: 4.8kg
  • RoHS conform product
