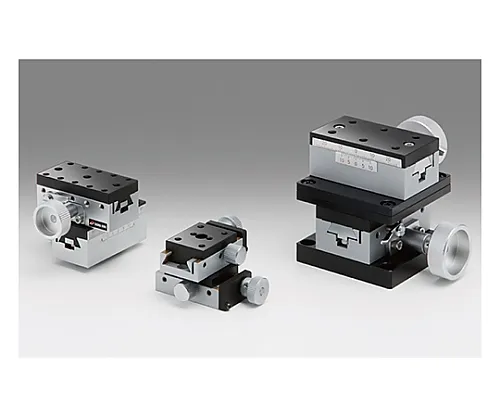

61-6972-48 XY Axis Rack Pinion Stage Size 38 x 65mm TAR-38652-M6
Product Description
Product Model: 61-6972-48Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6972-48
Product Brand: SIGMAKOKI CO., LTD.
Features
- Due to the ant groove guide/rack pinion system, this stage is suitable when the frequency of operation is relatively high and the amount of movement is required quickly.
- The TAR top spacer SP-109 and the TAS-2060 top spacer SP-127-1 can be ***d to attach rod stands and various stages.
- * The TARW-25502 cannot be fixed directly to the plane beca*** the feed handle protrudes from the stage body.
Spec
- Table surface size: 38 x 65mm
- Movement amount: ±15mm
- Movement amount/1 rotation: Approx 20mm
- Vernier scale: 0.1mm
- Movement guide: Dovetail method
- Main material: Brass
- Surface treatment: Super black chrome
- Screw pitch: ?
- Withstand load: 147N (15.0kgf)
- Movement accuracy/straightness: 20μm
- Permissible moment load/pitch: 2.9N・m
- Permissible moment load/roll: 1.5N・m
- Permissible moment load/yaw: 2.0N・m
- Moment rigidity/pitch: 0.15″/N・cm
- Moment rigidity/roll: 0.15″/N・cm
- Parallelism: 140μm
- Mass: 1.2kg
- RoHS conform product
