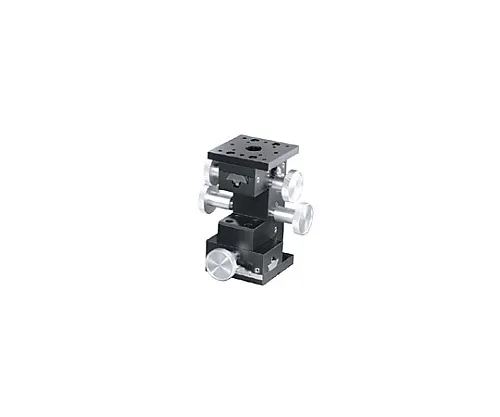

61-6972-45 X Axis Large/Small Movement Rack Pinion Stage Size 38 x 60mm TAR-38601D
Product Description
Product Model: 61-6972-45Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6972-45
Product Brand: SIGMAKOKI CO., LTD.
Features
- It is suitable when the movement frequency is relatively high and you want to ensure fast movement and movement amount.
- It is effective for equipment installation.
Spec
-
[
common specification]
- Movement guide: Rack pinion
- Main material: Brass
- Surface treatment: Super black chrome
- Display resolution: 0.1mm
- Sensitivity: 0.02mm
- [Individual specification]
- Table surface size: 38 x 60mm
- Movement amount: Coarse: ±15mm, fine: ±15mm
- Movement amount/1 rotation: Coarse: Approximately 20mm, fine: 2.5mm
- Vernier scale: 0.1mm
- Movement guide: Dovetail method
- Main material: Brass
- Surface treatment: Super black chrome
- Withstand load: 147N (15.0kgf)
- Movement accuracy/straightness: 20μm
- Permissible moment load/pitch: 2.9N・m
- Permissible moment load/roll: 1.5N・m
- Permissible moment load/yaw: 2.0N・m
- Moment rigidity/pitch: 0.51″/N・cm
- Moment rigidity/roll: 0.92″/N・cm
- Parallelism: 60μm
- Mass: 0.5kg
- RoHS conform product
