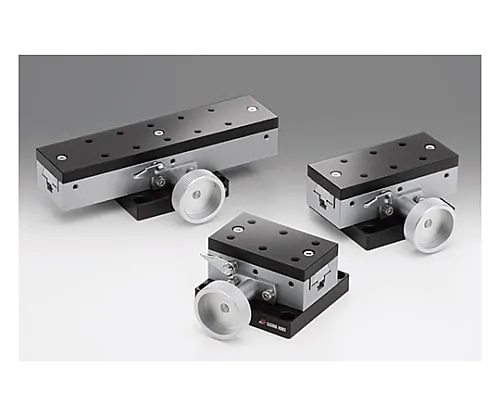

61-6972-41 X Axis Rack Pinion Stage Size 38 x 65mm TAR-38651-M6
Product Description
Product Model: 61-6972-41Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6972-41
Product Brand: SIGMAKOKI CO., LTD.
Features
- Due to the ant groove guide/rack pinion system, this stage is suitable when the frequency of operation is relatively high and the amount of movement is required quickly.
- Rod stands and various stages can be installed by converting the mounting holes using the TAR dedicated top spacers SP-109 and SP-131.
Spec
- Table surface size: 38 x 65mm
- Movement amount: ±15mm
- Movement guide: Dovetail method
- Main material: Brass
- Surface treatment: Super black chrome
- Movement amount/1 rotation: Approx 20mm
- Vernier scale: 0.1mm
- Withstand load: 147N (15.0kgf)
- Movement accuracy/straightness: 20μm
- Permissible moment load/pitch: 2.9N・m
- Permissible moment load/roll: 1.5N・m
- Permissible moment load/yaw: 2.0N・m
- Moment rigidity/pitch: 0.36″/N・cm
- Moment rigidity/roll: 0.82″/N・cm
- Parallelism: 60μm
- Mass: 0.6kg
- RoHS conform product
