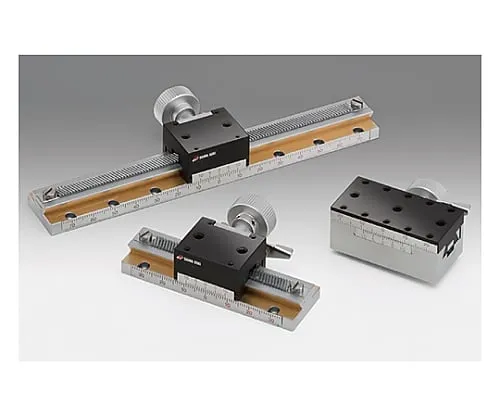

61-6972-37 X Axis Small Rack Pinion Stage Size 25 x 30mm TARW-25501
Product Description
Product Model: 61-6972-37Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6972-37
Product Brand: SIGMAKOKI CO., LTD.
Features
- Due to the ant groove guide/rack pinion system, this stage is suitable when the frequency of operation is relatively high and the amount of movement is required quickly.
- The table surface size is 25 x 30 mm long stroke type ant type stage.
- The feed handle and adjustment knob make it easy to operate.
- * The TARW-25501 cannot be fixed directly on a flat surface beca*** the feed handle protrudes from the bottom of the stage body.
- * Spacers are required.
Spec
- Table surface size: 25 x 50mm
- Movement amount: ±10mm
- Movement amount/1 rotation: Approx 20mm
- Vernier scale: 0.1mm
- Movement guide: Dovetail method
- Main material: Brass
- Surface treatment: Super black chrome
- Withstand load: 78.5N (8.0kgf)
- Movement accuracy/straightness: 20μm
- Permissible moment load/pitch: 1.2N・m
- Permissible moment load/roll: 0.6N・m
- Permissible moment load/yaw: 1.0N・m
- Moment rigidity/pitch: 1.22″/N・cm
- Moment rigidity/roll: 2.45″/N・cm
- Parallelism: 50μm
- Mass: 0.22kg
- RoHS conform product
