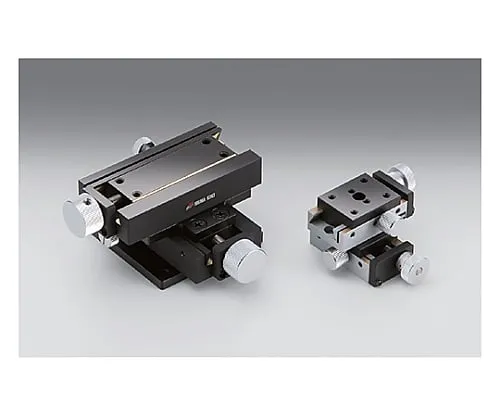

61-6972-32 XY Axis Screw Feed Stage Size 15 x 15mm TAS-152
Analyzer, Testing Equipment

61-6972-32 XY Axis Screw Feed Stage Size 15 x 15mm TAS-152

model: 61-6972-32
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6972-32Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6972-32
Product Brand: SIGMAKOKI CO., LTD.

Features

  • With the ant groove guide/screw feed adjustment method, this screw feed stage is suitable for fine adjustment applications.
  • The feed handle enhances operation efficiency.
  • The TAS-2060 special spacers SP-127-1 and SP-134 can be ***d to attach the rod stand and various stages by converting the mounting holes.
  • * Note that the TAS-152 does not have a clamping mechanism.
  • * It may protrude from the upper surface of the stage dep***ing on the parts fixing the feed screw and handle and the type of micrometer head.
  • * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be fixed or the amount of movement may not be secured.

Spec

  • Table surface size: 15 x 15mm
  • Movement amount: ±3mm
  • Movement guide: Dovetail method
  • Main material: Brass
  • Surface treatment: Super black chrome
  • Screw pitch: 0.4mm
  • Withstand load: 9.8N (1.0kgf)
  • Movement accuracy/straightness: 20μm
  • Permissible moment load/pitch: 0.05N・m
  • Permissible moment load/roll: 0.05N・m
  • Permissible moment load/yaw: 0.02N・m
  • Moment rigidity/pitch: ?
  • Moment rigidity/roll: ?
  • Parallelism: 100μm
  • Mass: 0.04kg
  • RoHS conform product
