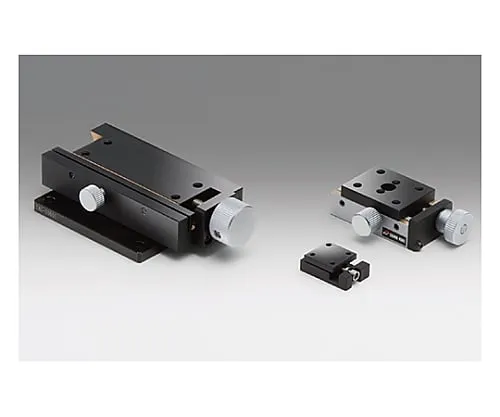

61-6972-27 x Axis Screw Feed Stage Size 15 x 15mm TAS-151
Product Description
Product Model: 61-6972-27Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6972-27
Product Brand: SIGMAKOKI CO., LTD.
Features
- With the ant groove guide/screw feed adjustment method, this screw feed stage is suitable for fine adjustment applications.
- The feed handle enhances operation efficiency.
- The TAS-2060 special spacers SP-127-1 and SP-134 can be ***d to attach the rod stand and various stages by converting the mounting holes.
- * Note that the TAS-151 does not have a clamping mechanism.
- * It may protrude from the upper surface of the stage dep***ing on the parts fixing the feed screw and handle and the type of micrometer head.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be fixed or the amount of movement may not be secured.
Spec
- Table surface size: 15 x 15mm
- Movement amount: ±3mm
- Movement guide: Dovetail method
- Main material: Brass
- Surface treatment: Super black chrome
- Screw pitch: 0.4mm
- Withstand load: 9.8N (1.0kgf)
- Movement accuracy/straightness: 20μm
- Permissible moment load/pitch: 0.05N・m
- Permissible moment load/roll: 0.05N・m
- Permissible moment load/yaw: 0.02N・m
- Moment rigidity/pitch: ?
- Moment rigidity/roll: ?
- Parallelism: 50μm
- Mass: 0.02kg
- RoHS conform product
