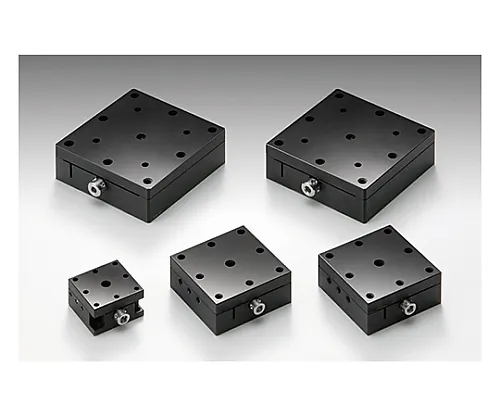

61-6972-13 x Axis Block Stage Size 15 x 15mm TASB-151
Product Description
Product Model: 61-6972-13Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6972-13
Product Brand: SIGMAKOKI CO., LTD.
Features
- Ant groove guide/screw feed adjustment system, block stage suitable for device integration application.
- It is also ideal for places where the frequency of operation is relatively small, for fine adjustment, and for completely fixed places.
- Beca*** of the block shape with as few adjustment knobs and protrusions as possible, installation space can be minimized.
- Hex wrench with knob and clamp wrench are included.
Spec
- Table surface size: 15 x 15mm
- Movement amount: ±2mm
- Movement guide: Dovetail method
- Main material: Brass
- Surface treatment: Black matte
- Screw pitch: 0.4mm
- Withstand load: 9.8N (1.0kgf)
- Movement accuracy/straightness: 10μm
- Permissible moment load/pitch: 0.5N・m
- Permissible moment load/roll: 0.5N・m
- Permissible moment load/yaw: 0.2N・m
- Moment rigidity/pitch: 8.0″/N・cm
- Moment rigidity/roll: 7.0″/N・cm
- Parallelism: 50μm
- Mass: 0.02kg
- RoHS conform product
