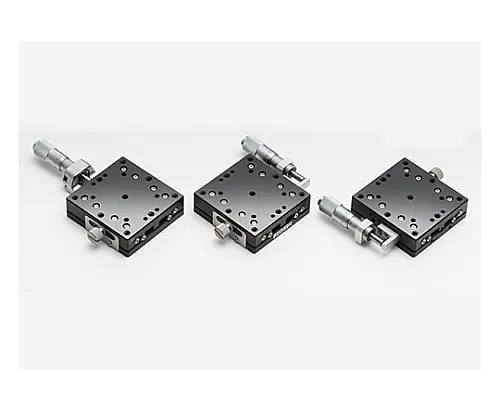

61-6972-04 x Axis Aluminum Stage Size 60 x 60mm TADC-601C
Analyzer, Testing Equipment

61-6972-04 x Axis Aluminum Stage Size 60 x 60mm TADC-601C

model: 61-6972-04
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6972-04Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6972-04
Product Brand: SIGMAKOKI CO., LTD.

Features

  • It has evolved from a high-rigidity integrated guide to a separate type, realizing low cost, high rigidity, and reduced weight.
  • Ideal for position and alignment adjustment, smooth movement can be obtained.
  • Since the steel ball moves in contact with the R groove of the guide at four points, it has a stable load capacity in all directions.
  • Maintenance-free with long life.
  • * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.

Spec

  • [

    common specification]
  • Table surface size: 60 x 60mm
  • Movement amount: ±6.5mm
  • Movement guide: Ball guide
  • Main material: Aluminum
  • Surface treatment: Black anodic oxide
  • Withstand load: 196N(20.0kgf)
  • Movement accuracy/straightness: 3μm
  • Permissible moment load/pitch: 4.9N・m
  • Permissible moment load/roll: 4.9N・m
  • Permissible moment load/yaw: 4.9N・m
  • Moment rigidity/pitch: 0.3″/N・cm
  • Moment rigidity/roll: 0.25″/N・cm
  • Parallelism: 30μm
  • Movement parallelism: 10μm
  • Mass: 0.2kg
  • [Individual specification]
  • Micro operation position: Center
  • Movement amount/1 rotation: 0.5mm
  • Micrometer minimum reading: 0.01mm
  • RoHS conform product
