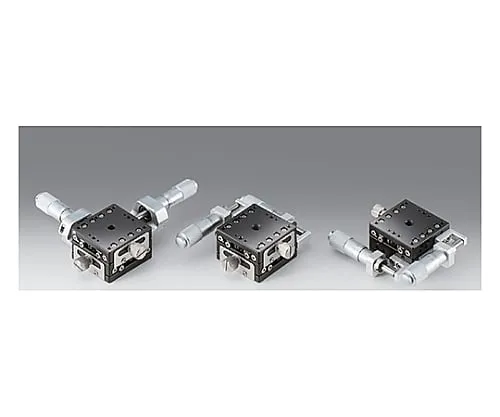

61-6971-94 XY Axis Aluminum Stage Size 40 x 40mm TADC-402WC
Product Description
Product Model: 61-6971-94Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6971-94
Product Brand: SIGMAKOKI CO., LTD.
Features
- It has evolved from a high-rigidity integrated guide to a separate type, realizing low cost, high rigidity, and reduced weight.
- Ideal for position and alignment adjustment, smooth movement can be obtained.
- Since the steel ball moves in contact with the R groove of the guide at four points, it has a stable load capacity in all directions.
- Maintenance-free with long life.
- * Dep***ing on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.
Spec
-
[
common specification]
- Table surface size: 40 x 40mm
- Movement amount: ±6.5mm
- Movement guide: Ball guide
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- Withstand load: 49N(5.0kgf)
- Movement accuracy/straightness: 3μm
- Permissible moment load/pitch: 2.5N・m
- Permissible moment load/roll: 2.5N・m
- Permissible moment load/yaw: 2.5N・m
- Moment rigidity/pitch: 1.22″/N・cm
- Moment rigidity/roll: 1.22″/N・cm
- Parallelism: 50μm
- Movement parallelism: 20μm
- Mass: 0.3kg
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- RoHS conform product
